The Volume-Spray
Original: Switzerland
Brand: Krea Swiss
Code: 09-211-001
Wire length: 1.8 m
Capacity: 700ml
Weight: 1.7kg
Delivery rate max. (water): 350 g/min
Viscosity max. (DIN-sec.): 100 DIN/sec
Rated Power: 90W
← Prev

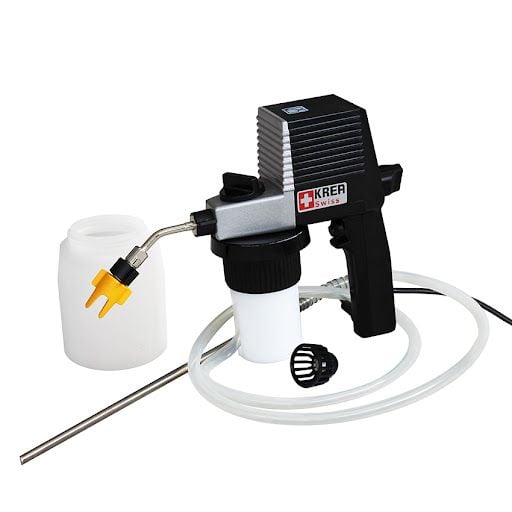

The Volume-Spray
The volume-SPRAY has been designed for spraying a higher delivery rate of materials using a larger container or the small cup container. It can be used with a range of medium to high viscosity food materials including egg wash, butter, sauce, glaze and chocolate, however is not recommended for thin materials such as oil or water as is too powerful.
Product Details
| Code | 09-211-001 |
| Wire length | 1.8 m |
| Capacity | 700 ml |
| Weight (Kg) | 1.7 Kg |
| Delivery rate max. (water) | 350 g/min |
| Viscosity max. (DIN-sec.) | 100 DIN/sec |
| Rated Power | 90 W |
Outstanding Features
BEFORE STARTING: please ensure that the container is at least 50% full. Do not use the volumeSPRAY without material or spray until completely empty. This avoids creating unnecessary noise & vibration and prevents splatter
The power setting and piston size of the volumeSPRAY allow it to deliver up to 350 grams of water per minute. The sprayer is designed to spray only medium to high viscosity food materials between 30 - 100 DIN/sec (too powerful for thin materials). This is sufficient to lightly coat circa 7 - 12 m2 using a surface pattern of about 10 cm, sprayed at approximately 30 cm distance.
• Before starting, turn the power knob completely to the left. This is the maximum power setting and after a few seconds it will allow sufficient suction for spraying the material. Adjust the power knob as required until the sprayer demonstrates a fine spray and makes an even tone.
• Maintain a constant distance and smooth movement.
• Avoid shaking the gun or sharp movements as this will cause droplets.
• Varying the speed of arm movement, the height and number of coatings, will vary the effect and thickness of sprayed material.
• It is recommended to start and stop the sideways movement off the product and only press the power button when over the product. This helps reduce the volume being sprayer at the turning point.
• The supplied R8 round nozzle provides a wider pattern, particularly for thicker materials. An R6 nozzle may also be used for thinner materials.
• If you want to spray from below, you may rotate the nozzle extension - however - only rotate in a clockwise direction (when viewed from the front), otherwise you will loosen the nozzle extension. The easiest method of adjusting the nozzle direction is from the right side, hold the pump housing firmly with your left hand and move the nozzle extension with your right hand
CLEANING
IMPORTANT: Always remove the electric parts before washing the gun. These parts should never be exposed to liquids. Always clean immediately after use.
For external cleaning, simply wipe down the outside of the sprayer with a dish soap. For internal cleaning, we recommend to spray half a container of very hot water through and then clean the individual parts using a suitable dishwashing detergent. Careful use of a soft pipe cleaning brush is also recommended. Care should be taken not to damage the cylinder by using abrasive or sharp tools. If available, blowing air through the nozzle can ease the cleaning process. Rinse thoroughly thereafter with hot clean water.
