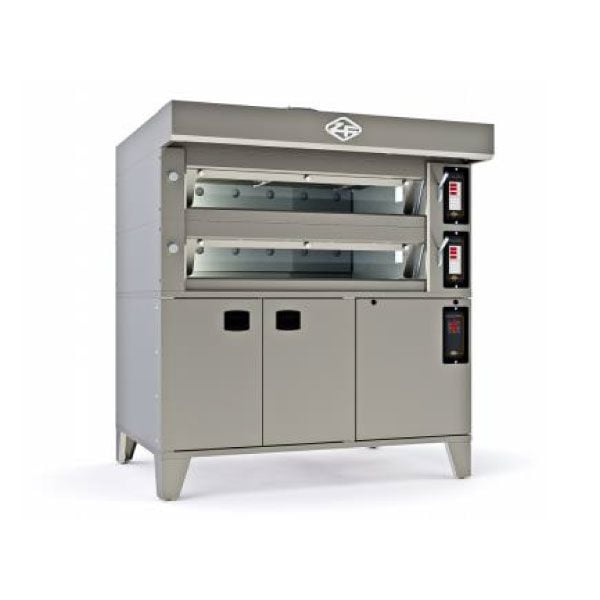

MODULAR 3T 40x60 DECK OVEN 23CM (STEAM)
Product Details:
Code | ZFUV010-S |
Dimensions (WxDxH) | 1600x1075x370 mm |
Tray | 40x60 cm |
Chamber height | 23cm |
Number of tray | 03 |
Voltage | 400V – 3N – 50-60Hz |
Standard outfit:
• Independent electric chamber: The electric chamber is totally independent from the oven. It is possible to use any function of it regardless of the oven status.
• Oven on support feet: The oven comes on four metal feet with a register to level in case of uneven floor. Feet are available in three different heights (see finishing).
Available optional:
• Oven front in “linen web”: Oven is normally supplied with satined stainless steel front. On request it can be in LINEN WEB stainless steel
• Satined stainless steel finishing: Oven is normally supplied with a painted sheet external paneling; on request, it can be in satined stainless steel
• Computerized electric chamber control panel: Digital electronic controller fitted as standard with: economizer, storable programs, delayed oven start-up, baking end timer alarm, control of steam heating element and ceiling and plate temperature control with dual thermostat and dual probe in each chamber
• Motorized steam suction hood: The oven must be provided with hood. The hood is supplied, as standard, without extractor. Upon request oven can be provided with a steam extractor in the hood. The steam suction housing is always made of stainless steel.
• Oven on wheels: As an alternative to the adjustable feet supplied as standard with the oven, it is possible to install four Ø80 swivel wheels; The front ones have brakes.
• Humidifier: Upon request oven can be supplied with humidifier. The high production of steam of the new humidifier makes this oven suitable also for baking. The humidifier is positioned under the oven which must therefore always have a proofer.
