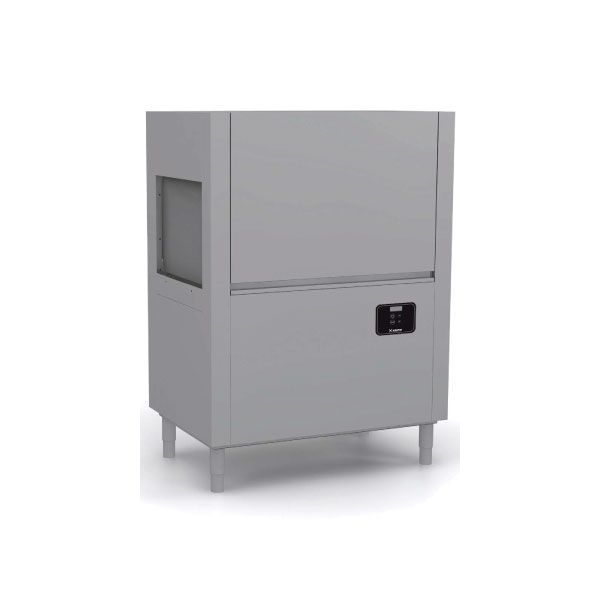

Krupps Rack Conveyor Dishwashser
PRODUCT DETAILS:
- Code: EVO101
- Dimensions (L x P x H): 1150 x 770 x 1615(h) mm
- Basket: 500 x 500 mm
- Power input: 21,7kW
- Voltage: 400V3N+T 50 Hz
Product description
MAIN CONTENT
KRUPPS RACK CONVEYOR DISHWASHER
The EVOLUTION range has been designed to meet the needs of every customer, thanks to the various accessories installable, combining large workloads and optimising spaces available, simplifying operator work and reducing consumption. The models of this line are equipped with a double filtration system that retains all residues, whereas the vertical wash pumps and stainless steel wash arms ensure great performance. Evolution is also equipped with counterbalanced doors with double wall and anti-fall system and rounded moulded tanks.
Product Details:
| Code | EVO101 |
| Dimensions (L x P x H) | 1150 x 770 x 1615(h) mm |
| Basket | 500 x 500 mm |
| Passage height max | 450cm |
| Power input | 21,7kW |
| Voltage | 400V3N+T 50 Hz |
| PRE-WASHING | |
| Tank capacity | 69 |
| Tank heating element | 10,5kW |
| FIRST WASHING | |
| Tank capacity | 69 |
| Washing pump | 1,5 / 2,0 |
| Tank heating element | 10,5kW |
| WASHING | |
| Tank capacity | 69 |
| Washing pump | 1,5 / 2,0 |
| Tank heating element | 10,5kW |
| PRE-RINSING | |
| Tank capacity | 69 |
| Washing pump | 1,5 / 2,0 |
| RINSING | |
| Boiler heating element | 9,5kW |
| Water consumption | ~180 |
| Inlet water temperature | +55°C |
| Minimum water pressure | 2 (BAR) |
| Water hardness | 7÷10 °f |
Features:
- The EVOLUTION Line has been designed to meet the needs of every customer, thanks to the various accessories installable, combining large workloads and optimising spaces available, simplifying operator work and reducing consumption. The models of this line are equipped with a double filtration system that retains all residues, whereas the vertical wash pumps and stainless steel wash arms ensure great performance. Evolution is also equipped with counterbalanced doors with double wall and anti-fall system and rounded moulded tanks.
- The compact range (with standard installed break-tank), has been designed to obtain large productivity in rather limited spaces, combining efficiency and reduced water consumption. Electricity and water consumption adapts to the productivity required to constantly optimise costs as needed. The double flow wash pump ensures great pressure even against stubborn dirt, while the pre-wash deals with larger residues, gathering them into a drawer filter that is easy to empty. The drying area uses the low temperature air to gently treat even the most sensitive dishes. The 450 mm useful opening allows the introduction of a wide range of dishes, dough trays, baking trays pots and various utensils.
