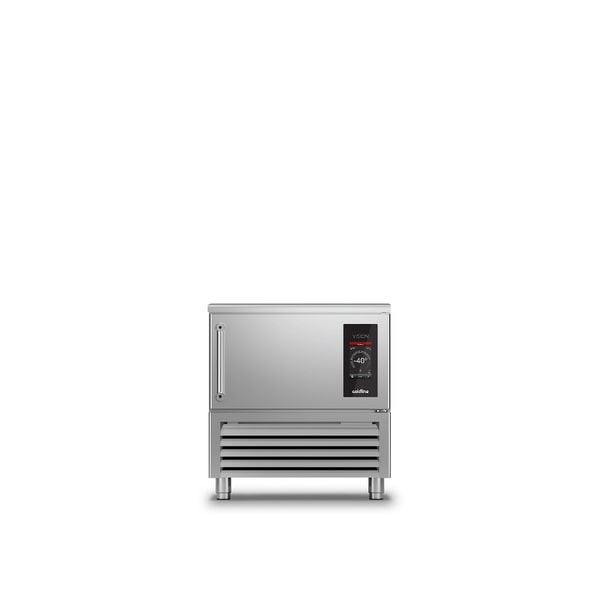

Coldline Vision 5T Blast Chiller F (-40ºC +65ºC)

Original: Italia Brand: Coldline


  • Code: W5F

  • Gross capacity: 134 lt

  • Temperature range: -40 +65ºC

  • Dimensions: 780 x 859 x 853 mm

Unit price
1 Machine
Share Social:

Prev Next

Coldline Vision 5T Blast Chiller F (-40ºC +65ºC)

Blast chilling, shock freezing, thawing, proving and retarder prover, holding, desiccation, chocolate, yoghurt, steam sanitizing, manual cycle
Product Details

Tray5 slides GN1/1, EN60x40
Climate class5 (max.40*C with 40% RH)
Gross capacity134 L
Dimensions780 x 859 x 853 mm
Gross weight120 Kg
Temperature range-40 + 65*C
Cooling gasR452A
DefrostHot gas
Voltage220-240 V - 50 Hz
Total rate1430 W
Cooling capacity1565 W
Control7” touch screen display with USB port
FunctionsBlast chilling, shock freezing, thawing,
proving and retarder prover, holding,
desiccation, chocolate, yoghurt, steam
sanitizing, manual cycle


  • Blast chilling: Quickly cools fresh or cooked food to a core temperature of +3 ºC
  • Shock freezing: Quickly cools fresh or cooked food to a core temperature of -18 ºC
  • Thawing: Safely and quickly thaws food while maintaining the original quality.
  • Proving and retarder prover: Creates the ideal micro-climate by adding moisture for perfect proving.
  • Holding: Maintain ice cream, desserts, cakes and dishes at a temperature ready.
  • Desiccation: Gently dehydrates food and extends storage times.
  • Chocolate: Pralines, chocolates and chocolate bars crystallise in a few minutes.
  • Yoghurt: Allows you to make creamy natural yoghurt using only good-quality milk.
  • Steam sanitizing: The blast chiller compartment is steam sanitised, thus removing odours and food residues
  • Manual cycle: Keeps food at temperature between -40 ºC +65 ºC


  • Modular base: Allows installation on wheels, feet, fixed or mobile base.
  • Electronic thermostatic valve Regulates the quantity of the refrigerant fluid gas injected, improving performance by 25% and reducing consumption.
  • Replaceable gaskets with high performance insulation: Triple chamber geometry with innovative D7 compound, which produces 35% higher insulation efficiency than traditional models.
  • Air flow circulation conveyor: The innovative air circulation system envelops the food while reducing the time of the cooling cycle.
  • Easy maintenance: The quick release system for the front panel allows the condenser battery to be cleaned quickly, ensuring that its performance over time remains constant.
  • Slides and racks: Removable quick-release racks without the need for use of tools, with positioning holes that facilitate air circulation and allow easy repositioning of EN60x40 and GN1/1 slides.
  • Ventilation panel opening: Easily inspected evaporator with the quick opening system for easy cleaning and maintenance.
  • Core probe: Developed with an exclusive ergonomic design, it can be easily dismantled and replaced thanks to a simple connector. Multipoint or heated optional.
  • Interior lighting: The lighting makes the visibility in the chamber excellent. LED technology ensures low consumption and does not alter the internal temperature of the compartment.
  • Devote®: Sensor-less technology optimizes the duration of the blast chilling and blast freezing programs, ensuring significant energy savings.
  • Stainless steel texture The stainless steel chamber is made more resistant by its particular texture.
  • Insulation thickness The thickness of the door has been increased to 80 mm, which allows for a better insulation performance and greater energy savings.
