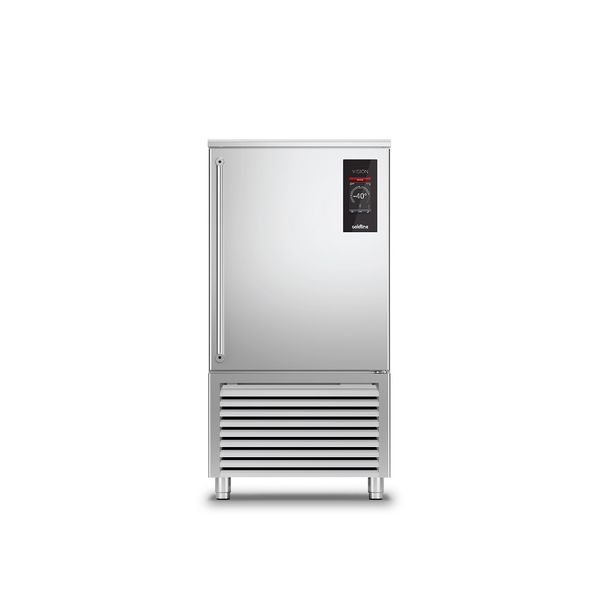

Coldline Vision 10T Blast Chiller NUVO (-40ºC +85ºC)
Blast chilling, shock freezing, thawing, proving and retarder prover, holding, desiccation, chocolate, yoghurt, steam pasteurisation, low temperature steam cooking, steam sanitizing, manual.
|Tray||10 slides GN1/1, EN60x40|
|Climate class||5 (max.40*C with 40% RH)|
|Gross capacity||367 L|
|Dimensions||780 x 859 x 1563 mm|
|Gross weight||195 Kg|
|Temperature range||-40 + 85*C|
|Voltage||400-415 V - 50-60 Hz|
|Total rate||5120 W|
|Cooling capacity||5440 W|
|Control||7” touch screen display with USB port|
|Functions||Blast chilling, shock freezing, thawing,|
proving and retarder prover, holding,
desiccation, chocolate, yoghurt, steam
pasteurisation, low temperature steam
cooking, steam sanitizing, manual.
- Blast chilling: Quickly cools fresh or cooked food to a core temperature of +3 ºC
- Shock freezing: Quickly cools fresh or cooked food to a core temperature of -18 ºC
- Thawing: Safely and quickly thaws food while maintaining the original quality.
- Proving and retarder prover: Creates the ideal micro-climate by adding moisture for perfect proving.
- Holding: Maintain ice cream, desserts, cakes and dishes at a temperature ready.
- Desiccation: Gently dehydrates food and extends storage times.
- Chocolate: Pralines, chocolates and chocolate bars crystallise in a few minutes.
- Yoghurt: Allows you to make creamy natural yoghurt using only good-quality milk.
- Steam sanitizing: The blast chiller compartment is steam sanitised, thus removing odours and food residues
- Manual cycle: Keeps food at temperature between -40 ºC +65 ºC
- Pasteurisation: Eliminates pathogenic micro-organisms in foods and extends storage times.
- Low temperature steam cooking: Gently cooks food at a controlled temperature while adding moisture.
- Modular base: Allows installation on wheels, feet, fixed or mobile base.
- Electronic thermostatic valve Regulates the quantity of the refrigerant fluid gas injected, improving performance by 25% and reducing consumption.
- Replaceable gaskets with high performance insulation: Triple chamber geometry with innovative D7 compound, which produces 35% higher insulation efficiency than traditional models.
- Air flow circulation conveyor: The innovative air circulation system envelops the food while reducing the time of the cooling cycle.
- Easy maintenance: The quick release system for the front panel allows the condenser battery to be cleaned quickly, ensuring that its performance over time remains constant.
- Slides and racks: Removable quick-release racks without the need for use of tools, with positioning holes that facilitate air circulation and allow easy repositioning of EN60x40 and GN1/1 slides.
- Ventilation panel opening: Easily inspected evaporator with the quick opening system for easy cleaning and maintenance.
- Core probe: Developed with an exclusive ergonomic design, it can be easily dismantled and replaced thanks to a simple connector. Multipoint or heated optional.
- Interior lighting: The lighting makes the visibility in the chamber excellent. LED technology ensures low consumption and does not alter the internal temperature of the compartment.
- Devote®: Sensor-less technology optimizes the duration of the blast chilling and blast freezing programs, ensuring significant energy savings.
- Stainless steel texture The stainless steel chamber is made more resistant by its particular texture.
- Insulation thickness The thickness of the door has been increased to 80 mm, which allows for a better insulation performance and greater energy savings.
