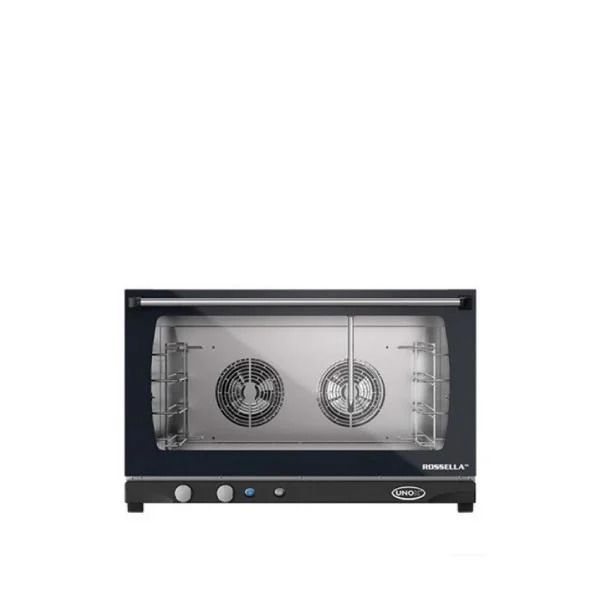

Unox Linemiss 4 Trays 600x400 (Manual H)
Unox convection ovens are equipped with many features special and advanced features today. It offers users a range of multi-function ovens, highly customizable to help control the cooking temperature more effectively.
Product details
CODE | XFT193 |
Capacity | 4 Trays 600x400 mm |
Pitch | 75 mm |
Demenstions | 800x774x509 mm |
Weight | 49 Kg |
Type of opening | From top to bottom |
Voltage | 230 V – 1P – 50/60 Hz |
Powder | 6.5 kW |
Humidity | Yes |
Convection baking | 80 – 260°C |
Mixed humidity an convection baking | 90 – 260°C |
Features
Baking Modes
- Convection baking 30 – 260°C
- Mixed humidity and convection baking 90°C - 260°C
Air Distribution In The Baking Chamber
- AIR.Plus technology: fans with reversing gear on models 600x400
Clima Management In The Baking Chamber
- DRY.Plus technology: quick extraction of the humidity from the baking chamber
- STEAM.Plus technology: manual humidity injection
- Pump that allows the oven to draw water from the tank, for models 460x330
- Solenoid valve that allows the connection between oven and water directly, for models 600x400
Pans
- Aluminium flat pans, for models 460x330
Auxiliary Functions
Protek.SAFETM technology: maximum thermal efficiency and working safety, cool door glass and external surfaces
Visualisation of the residual baking time
Continuous functioning “INF”
Technical Details
Rounded stainless steel chamber for hygiene and easy of cleaning
Chamber lighting through external LED lights
Light weight - heavy duty structure using innovative materials
Proximity door contact switch on models 600x400
Safety temperature switch
Auxiliary Functions
Protek.SAFETM technology: maximum thermal efficiency and working safety, cool door glass and external surfaces
Visualisation of the residual baking time
Continuous functioning “INF”
Technical Details
Rounded stainless steel chamber for hygiene and easy of cleaning
Chamber lighting through external LED lights
Light weight - heavy duty structure using innovative materials
Proximity door contact switch on models 600x400
Safety temperature switch
